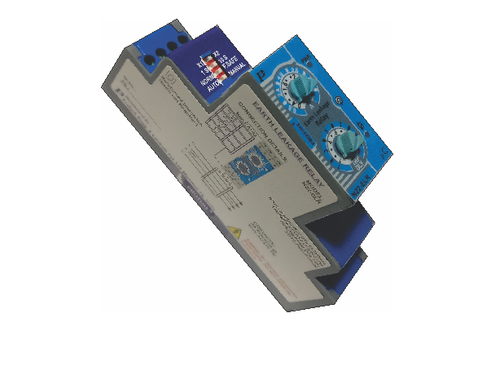

Earth leakage Relays N22-ELR A:25mA-500mA

Earth leakage Relays N22-ELR A:25mA-500mA

1700 INR/Piece

Product Details:

  • Product Type Earth leakage Relays N22-ELR A:25mA-500mA
  • Usage Industrial
  • Contact Load Low Power
  • Click to View more
X

Earth leakage Relays N22-ELR A:25mA-500mA Price And Quantity

  • 50 Piece
  • 1700 INR/Piece

Earth leakage Relays N22-ELR A:25mA-500mA Product Specifications

  • Earth leakage Relays N22-ELR A:25mA-500mA
  • Low Power
  • Industrial

Earth leakage Relays N22-ELR A:25mA-500mA Trade Information

  • 1000 Piece Per Month
  • 3-5 Days

Product Description

PROTIME's N22-ELR senses the Earth leakage current through CBCT. These leakage current if continues, can cause insulation breakdown resulting Earth fault, which results in to loss of life or damage to equipment. PROTIME N22-ELR energises / denergises an internal relay based on Mode of operation selected by user (i.e. Normal or Fail Safe) when Leakage current goes out of the range selected on the dial. PROTIME-Earth Leakage Relays are provided with user selectable two Tripping Ranges, and also two Time delay ranges in one unit. The CBCT is connected externally with the Busbar or cable carrying load current passed through it.

Specification

Model Name/Number

N22-ELR

Voltage Type

AC

Application

Power Distribution Boards, Motor Control Center, Control Panel boards, Etc.

Number of Poles

NA

Current (Amps)

5A

Voltage (V)

90-270V AC/DC
