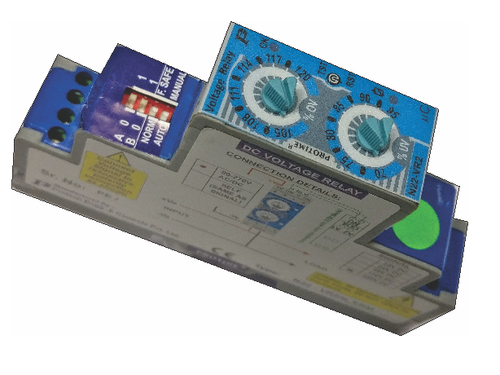

DC Voltage Relays Combine UV - OV N22-VR2/D

Name: DC Voltage Relays Combine UV - OV N22-VR2/D
Brand: PROTECH ENGINEERING & CONTROL PVT. LTD.
Price: 2150 INR
Availability: InStock

2150 INR/Piece

Get a Price/Quote

Product Details:

Contact Resistance <100m (initial)
Dielectiric Strength 2kV AC, 1 min
Protect Feature Combined Under Voltage and Over Voltage cut-off
Contact Form SPDT (Single Pole Double Throw)
Contact Material Ag alloy
Coil Voltage Matches rated voltage (model specific)
Mechanical Life >10,000,000 operations
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

DC Voltage Relays Combine UV - OV N22-VR2/D Price And Quantity

Minimum Order Quantity 10 Piece
Price 2150 INR/Piece

DC Voltage Relays Combine UV - OV N22-VR2/D Product Specifications

Terminal Type Screw terminals
Contact Resistance <100m (initial)
Theory Electromagnetic relay system
Color Blue/White with panel markings
Product Type DC Voltage Relays Combine UV - OV N22-VR2/d
Contact Form SPDT (Single Pole Double Throw)
Protect Feature Combined Under Voltage and Over Voltage cut-off
Supply Terminal Dedicated input terminals for DC supply
Contact Material Ag alloy
Usage Protection of DC circuits/devices from under voltage (UV) and over voltage (OV) conditions
Dielectiric Strength 2kV AC, 1 min
Weight Approx. 120g
Working Temperature -10C to +55C
Coil Power Approx. 1W
Power Consumption <3W
Operate Time Typically < 50ms
Coil Voltage Matches rated voltage (model specific)
Mechanical Life >10,000,000 operations
Contact Load Low Power
Rated Voltage 24V DC, 48V DC, 110V DC, 220V DC (model specific)
Dimension (L*W*H) Approx. 87mm x 22.5mm x 69mm
Size Standard DIN rail mount enclosure
Insulation Resistance >100M at 500V DC
Ambient Temperature -10C to +55C

LED Indication Integrated LED status indicators for relay operation and fault detection
Standards Compliance Conforms to IEC standards for industrial relays
Humidity Resistance Up to 95% RH (non-condensing)
Adjustment Dual rotary dial for independent UV & OV setting ranges
Reset Mode Automatic reset upon return to safe voltage range
Mounting 35mm DIN rail mount

DC Voltage Relays Combine UV - OV N22-VR2/D Trade Information

Supply Ability 1000 Piece Per Month
Delivery Time 3-5 Days

Product Description

Experience flawless protection and rarefied reliability with the DC Voltage Relays Combine UV - OV N22-VR2/D. Crafted for virtuoso performance, this fresh relay offers combined under and over-voltage cut-off, ensuring your devices remain safeguarded against unexpected surges or drops. Reserve confidence with dual rotary dials for independent settings, integrated LED status indicators, and savings on downtime with an automatic reset system. Built for industrial resilience, it withstands humidity up to 95% RH, operates from -10C to +55C, and exceeds mechanical life expectations with over 10 million flawless cycles.

Exceptional Versatility for Industrial Applications

The DC Voltage Relays Combine UV - OV N22-VR2/D is used widely in DC circuits and sensitive device protection, ensuring consistent operation across power systems. Its area of application spans power distribution panels, battery management systems, and critical DC equipment. The relay's precision protects components from both over-voltage and under-voltage risks, minimizing electrical faults and ensuring reliable functioning for industrial machinery, control panels, renewable energy installations, and automated systems.

Dependable Supply and Efficient Delivery Advantages

With substantial supply ability, N22-VR2/D relays are ready for prompt drop-off within short delivery timelines, typically around 5-10 days. Expenditure controls are maintained with competitive pricing and low power charge. Samples are available for evaluation before bulk purchase, enabling informed decisions and maximized budget savings. The streamlined distribution process-coupled with secure packaging-guarantees reliable delivery and minimal setup delays to support your operation's continuity.

FAQ's of DC Voltage Relays Combine UV - OV N22-VR2/D:

Q: How does the DC Voltage Relay N22-VR2/D protect devices?

A: The relay monitors voltage levels and instantly disconnects the circuit if it detects under or over-voltage, automatically resetting once safe conditions are restored, ensuring continuous protection for DC devices.

Q: What areas can the N22-VR2/D relay be applied in?

A: This relay is suitable for power distribution panels, industrial control systems, battery management applications, and renewable energy installations where precise DC circuit protection is essential.

Q: When should I adjust the UV and OV settings?

A: Adjustment should be performed during installation or maintenance to match your device's optimal voltage thresholds, using the independent dual rotary dials provided on the unit.

Q: Where does this relay mount, and how is it installed?

A: The relay features a DIN rail (35mm) mounting design for effortless integration into standard electrical enclosures or industrial panels, using its screw terminals for secure connections.

Q: What are the benefits of using this relay in my DC power setup?

A: By automatically safeguarding against voltage anomalies, this relay reduces downtime, extends equipment life, delivers savings on maintenance, and enhances reliability in critical electrical circuits.
