Single Phase Voltage Relays Combine UV - OV N22-VR2

Name: Single Phase Voltage Relays Combine UV - OV N22-VR2
Brand: PROTECH ENGINEERING & CONTROL PVT. LTD.
Price: 2150 INR
Availability: InStock

2150 INR/Piece

Get a Price/Quote

Product Details:

Power Consumption <2VA
Contact Form SPDT (1c)
Contact Material Silver alloy
Coil Power Approx. 1.2VA
Mechanical Life 10,000,000 times (min.)
Ambient Temperature -10C to +55C
Contact Resistance 50 m max.
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Single Phase Voltage Relays Combine UV - OV N22-VR2 Price And Quantity

Minimum Order Quantity 10 Piece
Price 2150 INR/Piece

Single Phase Voltage Relays Combine UV - OV N22-VR2 Product Specifications

Working Temperature -10C to +55C
Insulation Resistance 100M min. (500VDC)
Supply Terminal L, N
Protect Feature Under Voltage & Over Voltage Protection
Terminal Type Screw terminal
Coil Voltage 230V AC
Usage Single Phase Voltage Monitoring
Dielectiric Strength 2,000V AC for 1 minute
Dimension (L*W*H) Approx. 80 60 18 mm
Size Miniature
Contact Load Low Power
Weight Approx. 150g
Product Type Single Phase Voltage Relays
Operate Time <200ms
Mechanical Life 10,000,000 times (min.)
Ambient Temperature -10C to +55C
Contact Resistance 50 m max.
Theory Electromagnetic Relay
Power Consumption <2VA
Color Blue/White
Contact Form SPDT (1c)
Contact Material Silver alloy
Rated Voltage 230V AC, 50/60Hz
Coil Power Approx. 1.2VA

Response Time <200ms
Standards Compliance IEC/EN 60255-1
Humidity 45-85% RH (non-condensing)
Storage Temperature -25C to +70C
Output Indication LED indication
Mounting Type DIN Rail Mount
Adjustment Range - Under Voltage 160-210V (adjustable)
Reset Type Automatic/Manual
Adjustment Range - Over Voltage 230-280V (adjustable)

Single Phase Voltage Relays Combine UV - OV N22-VR2 Trade Information

Supply Ability 1000 Piece Per Month
Delivery Time 3-5 Days

Product Description

Meet the best-selling Single Phase Voltage Relays Combine UV - OV N22-VR2, a champion for reliable single phase voltage monitoring. With lofty specifications and first-rate safety features, this compact unit offers under and over voltage protection with reduced risk of electrical mishap. Enjoy best price offers for this powerhouse, featuring flexible DIN rail mounting, LED output indication, automatic/manual reset, and rapid <200ms response time. Compliant with IEC/EN 60255-1 standards and an impressive mechanical life of 10,000,000 operations, it's the ideal, cost-effective solution for both manufacturers and exporters in India.

Trusted Choice for Professionals and Durable Construction

The N22-VR2 single phase voltage relay is widely used by electrical engineers, manufacturers, and exporters for critical monitoring applications. Built with a robust silver alloy SPDT contact, this relay features a protective blue/white case and compact, miniature size for seamless DIN rail mounting. Highlighted by both under and over voltage protection, LED indication, and both automatic and manual reset, its versatility and safety credentials make it a preferred choice in various industries.

Extensive Domestic Market Reach and Streamlined Delivery

We provide the N22-VR2 at lowest price rates throughout the main domestic market in India. Our sample policy ensures customers can evaluate quality before full purchase. With major FOB ports and reliable transport services, we facilitate secure and timely product transportation to your desired location, making the delivery process smooth and efficient. Trust our experienced team to handle your shipment with utmost care from our manufacturing facility to your premises.

FAQ's of Single Phase Voltage Relays Combine UV - OV N22-VR2:

Q: How does the N22-VR2 voltage relay protect my electrical equipment?

A: The N22-VR2 provides under and over voltage protection by constantly monitoring the incoming voltage and disconnecting circuits when levels move beyond set thresholds, helping prevent damage to sensitive equipment.

Q: What features make the N22-VR2 suitable for various industries?

A: Designed with adjustable voltage ranges, both automatic/manual reset, fast response under 200ms, and a compact DIN rail mount, the relay adapts easily to diverse industrial and commercial applications.

Q: When should I use the N22-VR2 Single Phase Voltage Relay?

A: Use the N22-VR2 whenever you need reliable monitoring and protection of single phase circuits, especially in environments where voltage fluctuations are common and could impact equipment performance.

Q: Where can I purchase the N22-VR2 relay at the best price?

A: The N22-VR2 is available directly from reputable Indian manufacturers and exporters, offering reduced pricing and comprehensive transport services to ensure competitive rates and swift delivery.

Q: What is the process to get a sample of the N22-VR2 relay?

A: Requesting a sample is simple: contact the manufacturer or exporter, provide your specifications, and they will arrange for sample shipment via their established sample policy and logistics network.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Voltage Relays' category

Three Phase Three Wire Voltage Relays N22-VR3-3 Price : 2150 INR/Piece Minimum Order Quantity : 10 Size : Miniature Product Type : Three Phase Three Wire Voltage Relays N22VR33 Protect Feature : Other, Phase Loss, Phase Sequence, Phase Reversal Insulation Resistance : 100 M (at 500V DC) Supply Terminal : L1, L2, L3 Working Temperature : 10C to +55C Dimension (L*W*H) : Approx. 80mm x 60mm x 18mm Contact Load : Low Power Usage : Phase sequence and failure monitoring in threephase systems Dielectiric Strength : 2kV AC for 1 minute Weight : Approx. 120g Terminal Type : Other, Screw terminal Coil Voltage : 415V AC Ambient Temperature : 10C to +55C Contact Resistance : 100 m (initial) Mechanical Life : 10,000,000 operations (min) Operate Time : <200ms (on phase failure or incorrect phase sequence) Contact Form : 1 C/O (SPDT) Rated Voltage : 415V AC Contact Material : Silver Alloy Coil Power : Approx. 2.0VA Color : Blue and White Theory : Other , Electromagnetic Relay Power Consumption : Less than 2VA

Send Inquiry

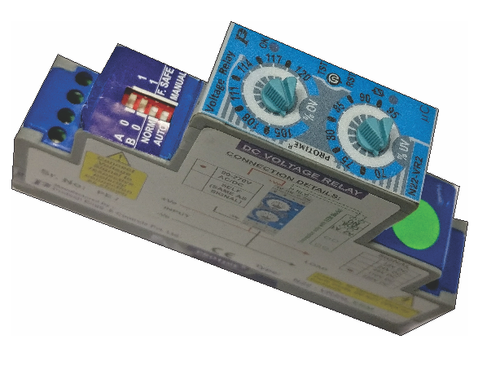

DC Voltage Relays Combine UV - OV N22-VR2/D Price : 2150 INR/Piece Minimum Order Quantity : 10 Size : Other, Standard DIN rail mount enclosure Product Type : DC Voltage Relays Combine UV OV N22VR2/d Protect Feature : Other, Combined Under Voltage and Over Voltage cutoff Insulation Resistance : 100M at 500V DC Supply Terminal : Dedicated input terminals for DC supply Working Temperature : 10C to +55C Dimension (L*W*H) : Approx. 87mm x 22.5mm x 69mm Contact Load : Low Power Usage : Protection of DC circuits/devices from under voltage (UV) and over voltage (OV) conditions Dielectiric Strength : 2kV AC, 1 min Weight : Approx. 120g Terminal Type : Other, Screw terminals Coil Voltage : Matches rated voltage (model specific) Ambient Temperature : 10C to +55C Contact Resistance : <100m (initial) Mechanical Life : 10,000,000 operations Operate Time : Typically < 50ms Contact Form : SPDT (Single Pole Double Throw) Rated Voltage : 24V DC, 48V DC, 110V DC, 220V DC (model specific) Contact Material : Ag alloy Coil Power : Approx. 1W Color : Blue/White with panel markings Theory : Other , Electromagnetic relay system Power Consumption : <3W
