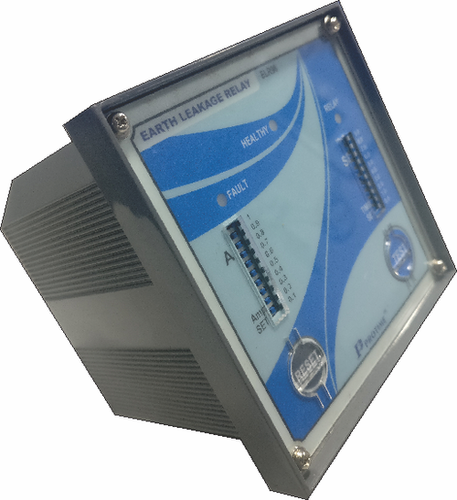

Earth Leakage Relays ELR96-1/i C:0.1A-1.0A

Get a Price/Quote

Product Details:

Coil Power <2 VA
Working Temperature -10C to +55C
Ambient Temperature -10C to +55C
Power Consumption <5 VA
Protect Feature Earth Leakage Protection
Mechanical Life >1,000,000 operations
Contact Material Silver Alloy
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Earth Leakage Relays ELR96-1/i C:0.1A-1.0A Price And Quantity

Minimum Order Quantity 5 Piece

Earth Leakage Relays ELR96-1/i C:0.1A-1.0A Product Specifications

Usage Earth Leakage Protection in Electrical Panels
Contact Form 1 Changeover (SPDT)
Contact Material Silver Alloy
Dielectiric Strength 2 kV, 50Hz, 1 min
Dimension (L*W*H) 96 mm x 96 mm x 85 mm (approx.)
Contact Load Low Power
Coil Power <2 VA
Working Temperature -10C to +55C
Size 96 mm x 96 mm
Product Type Earth leakage Relays ELR96-1/i C:0.1A-1.0A
Insulation Resistance >100 M at 500V DC
Color Grey/Black
Theory Earth Leakage Detection
Terminal Type Screw Type
Power Consumption <5 VA
Mechanical Life >1,000,000 operations
Protect Feature Earth Leakage Protection
Rated Voltage 230V AC
Contact Resistance <50 m
Operate Time Adjustable (100 ms - 1 s)
Coil Voltage 230V AC
Supply Terminal Back Panel Mount
Ambient Temperature -10C to +55C
Weight Approx. 350g

Rated Sensitivity Adjustable 0.1A to 1.0A
Standards Compliance IEC 60947-2
Display LED Bar Graph for Leakage Current
Reset Method Manual and Auto Reset
Frequency 50/60 Hz
Mounting Type Panel Mount
Trip Indication LED Indication

Earth Leakage Relays ELR96-1/i C:0.1A-1.0A Trade Information

Supply Ability 1000 Piece Per Month
Delivery Time 3-5 Days

Product Description

The relay senses the Earth leakage current for any equipments like L. T. Panels, Switch boards, Generators, Transformers, Motors etc. These Leakage current if continues can cause insulation breakdown resulting Earth fault, which results in to loss of life or damage to equipment. The PROTIME Earth leakage relay senses leakage current through CBCT & energies relay when current goes out of the range selected on the dip switches. The Relays are provided with user settable (0-10 Sec) time delay. The CBCT is connected externally with the Busbar or cable carrying load current passed through it. The Relay has facility to show fault current indication on pressing STATUS Button. Thus this feature helps user to identify the point of fault & find out the value of fault current passing through it.

Adjustable Sensitivity, High Performance

This relay offers a customizable sensitivity setting from 0.1A to 1.0A, allowing you to fine-tune protection for specific application needs. The wide adjustment range ensures versatility for numerous panel designs and protection requirements, increasing operational safety and flexibility in earth leakage detection.

User-Friendly Indication and Reset Methods

Equipped with a clear LED trip indicator and a bar graph display for leakage current, monitoring system status is straightforward. The relay can be reset manually or automatically, ensuring quick restoration after fault clearance and adaptable handling of fault events, minimizing downtime.

Built for Reliability and Compliance

The ELR96-1/i is meticulously engineered to comply with stringent IEC 60947-2 standards, ensuring both performance and safety. Its robust panel-mount design, screw terminals, and high mechanical life make it dependable for industrial and commercial settings alike.

FAQ's of Earth Leakage Relays ELR96-1/i C:0.1A-1.0A:

Q: How does the ELR96-1/i earth leakage relay detect leakage current?

A: The relay monitors leakage current through connected electrical panels using specifically calibrated sensors. When leakage exceeds the set sensitivity (adjustable between 0.1A and 1.0A), the device triggers a trip, indicated by the LED and a bar graph display.

Q: What is the process for resetting the relay after a trip event?

A: The ELR96-1/i can be reset manually by pressing the reset button, or automatically if set to auto-reset mode. The method can be chosen based on your site's operational preferences, providing flexibility in maintenance and response timing.

Q: Where is the ELR96-1/i relay commonly installed?

A: This device is typically mounted on electrical panels in industrial or commercial environments. Its panel-mount design and back panel supply terminal allow for seamless and secure integration into protection circuits of various electrical installations.

Q: When should I adjust the sensitivity setting on the relay?

A: The sensitivity should be set according to the specific leakage protection requirements of your system. Adjust within the 0.1A to 1.0A range to balance between avoiding nuisance trips and ensuring timely fault detection depending on system load and safety protocols.

Q: What are the core benefits of using this earth leakage relay?

A: Key advantages include improved protection against earth faults, rapid trip response (adjustable operate time from 100 ms to 1 second), clear fault indication, and compliance with industry safety standards. These features help reduce electrical risks and boost system reliability.

Q: How is the operating status of the relay monitored?

A: Operational status and current leakage levels are visually indicated by the LED trip lamp and the LED bar graph on the device, allowing for quick assessment of system health without the need for additional tools.
