Earth Leakage Relays ELR96-1/i E:0.5A-5.0A

Get a Price/Quote

Product Details:

Contact Material Silver alloy
Contact Form 1 Change over (SPDT)
Ambient Temperature -10C to +55C
Coil Voltage As per rated input supply (230V AC/110V AC/24V DC)
Contact Resistance 100m
Mechanical Life Greater than 1 million operations
Power Consumption Less than 5VA
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Earth Leakage Relays ELR96-1/i E:0.5A-5.0A Price And Quantity

Minimum Order Quantity 5 Piece

Earth Leakage Relays ELR96-1/i E:0.5A-5.0A Product Specifications

Product Type Earth leakage Relays
Coil Voltage As per rated input supply (230V AC/110V AC/24V DC)
Contact Resistance 100m
Terminal Type Screw type terminals
Mechanical Life Greater than 1 million operations
Dimension (L*W*H) 96 x 96 x 102 mm
Supply Terminal Rear terminal connections
Ambient Temperature -10C to +55C
Contact Load Low Power
Contact Material Silver alloy
Insulation Resistance More than 100M at 500V DC
Contact Form 1 Change over (SPDT)
Color White/Grey (Front face panel)
Rated Voltage 230V AC/110V AC/24V DC (as per model selection)
Dielectiric Strength 2 kV AC for 1 minute
Power Consumption Less than 5VA
Theory Detects earth leakage current using external CT
Weight Approx 200 grams
Size Miniature
Coil Power Less than 5VA
Protect Feature Earth leakage protection, manual & auto reset options
Working Temperature -10C to +55C
Operate Time Adjustable 0.2 to 5 seconds
Usage Earth leakage protection for power distribution systems

Compliance Standards IS/IEC 60947-1, IS 12640
Reset Type Manual/Automatic selectable
Mounting Type Panel mounting (Flush type)
Output Relay Potential-free NO/NC contacts
Enclosure Material ABS engineering plastic
Frequency 50/60 Hz
Tripping Current Range 0.5A to 5.0A (Adjustable by rotary switch)
Test Function Front panel TEST & RESET push buttons
Indication LED indication for power ON, Trip & Relay status

Earth Leakage Relays ELR96-1/i E:0.5A-5.0A Trade Information

Supply Ability 1000 Piece Per Month
Delivery Time 3-5 Days

Product Description

The relay senses the Earth leakage current for any equipments like L. T. Panels, Switch boards, Generators, Transformers, Motors etc. These Leakage current if continues can cause insulation breakdown resulting Earth fault, which results in to loss of life or damage to equipment. The PROTIME Earth leakage relay senses leakage current through CBCT & energies relay when current goes out of the range selected on the dip switches. The Relays are provided with user settable (0-10 Sec) time delay. The CBCT is connected externally with the Busbar or cable carrying load current passed through it. The Relay has facility to show fault current indication on pressing STATUS Button. Thus this feature helps user to identify the point of fault & find out the value of fault current passing through it.

Reliable Earth Leakage Protection

Engineered for safety, the ELR96-1/i provides dependable earth leakage protection for power distribution networks. Adjustable tripping current and delay settings enable tailored protection, while test and reset buttons facilitate thorough system checks without disruption. LED indicators ensure at-a-glance system status monitoring, supporting proactive maintenance and quick response.

Versatile & User-Friendly Design

The relay is designed for easy integration into control panels, with screw-type terminals and rear terminal connections. Its robust ABS enclosure and flush mounting construction ensure durability and space efficiency, while selectable reset modes provide operational flexibility in various environments.

Compliant and Durable Engineering

Complying with major international standards (IS/IEC 60947-1, IS 12640), the ELR96-1/i delivers over a million mechanical operations and has an insulation resistance exceeding 100M at 500V DC, ensuring consistent operation in demanding industrial and commercial settings.

FAQ's of Earth Leakage Relays ELR96-1/i E:0.5A-5.0A:

Q: How does the ELR96-1/i detect earth leakage current?

A: The ELR96-1/i detects earth leakage by monitoring leakage current flowing through an external current transformer (CT). When the leakage reaches or exceeds the set threshold (adjustable from 0.5A to 5.0A), the relay trips to disconnect the supply and prevent possible hazards.

Q: What process should be followed to test the relay's operation?

A: You can test the relay's functionality using the TEST and RESET push buttons located on the front panel. The TEST button simulates earth leakage to ensure proper response, while the RESET button restores the relay to operational status. Both manual and automatic reset options are available for enhanced flexibility.

Q: When should I select manual versus automatic reset mode?

A: Manual reset is recommended for scenarios requiring operator intervention before the relay resumes protection, ensuring faults are thoroughly checked. Automatic reset is ideal when immediate restoration is desired and the system is designed to safely recover autonomously after temporary earth leakage faults.

Q: Where is the ELR96-1/i ideally mounted in a power system?

A: The device is designed for flush-type panel mounting, making it suitable for installation in control panels or distribution boards within switchrooms, substations, or equipment enclosures where earth leakage protection is required.

Q: What are the primary benefits of using the ELR96-1/i relay?

A: The ELR96-1/i enhances electrical safety by quickly detecting dangerous leakage currents, reducing fire risks and equipment damage. Its adjustable settings, durability, and clear LED indicators facilitate straightforward operation and maintenance, offering peace of mind in critical applications.

Q: How should wiring and supply voltage be managed during installation?

A: Ensure supply voltage matches the selected model (230V AC, 110V AC, or 24V DC) before wiring. Use the rear screw-type terminal connections for secure attachment, and follow standard practices for integrating the external CT and relay output contacts for safe and reliable performance.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Earth Leakage Relays' category

Earth Leakage Relays ELR96-1C/i E:0.5A-5.0A Minimum Order Quantity : 5 Product Type : Earth leakage Relays Contact Load : Low Power Contact Form : 1 Changeover (SPDT) Protect Feature : Other, Earth Leakage Protection, Auto/Manual Reset Contact Material : Silver Alloy Insulation Resistance : 100M at 500V DC Ambient Temperature : 10C to +55C Mechanical Life : 10,000,000 operations Coil Power : 2VA Dimension (L*W*H) : 96 x 96 x 110 mm Supply Terminal : Rear Working Temperature : 10C to +55C Size : Other, 96 x 96 mm front panel Terminal Type : Other, Screw terminal Contact Resistance : <50 m Theory : Other , Electromagnetic Relay Detection Power Consumption : <5VA Coil Voltage : 230V AC, 50Hz Dielectiric Strength : 2kV AC for 1 minute Rated Voltage : 230V AC / 110V AC optional

Send Inquiry

Earth Leakage Relays ELR96-1C B:50mA-500mA Minimum Order Quantity : 5 Product Type : Earth leakage Relays Contact Load : Low Power Contact Form : 1 Changeover (C/O) Protect Feature : Other, Earth Leakage Current sensing 50mA to 500mA Contact Material : AgCdO (Silver Cadmium Oxide) Insulation Resistance : = 100 M at 500V DC Ambient Temperature : 5C to +55C Mechanical Life : 2 million operations Coil Power : N.A. (Electronic Relay) Supply Terminal : Back Panel Working Temperature : 0C to 50C Size : Miniature Terminal Type : Other, Screw Type Terminals Contact Resistance : < 50 m Theory : Other , Electronic Sensing and Relay Operation Power Consumption : < 3VA Coil Voltage : N.A. (Electronic Relay) Dielectiric Strength : 2kV for 1 min between input/output/ground

Send Inquiry

Earth Leakage Relays ELR96-1C C:0.1A-1.0A Minimum Order Quantity : 5 Product Type : Earth leakage Relays Contact Load : Low Power Contact Form : 1 Changeover (SPDT) Protect Feature : Other, Earth Leakage Protection Contact Material : Silver Alloy Insulation Resistance : =100M at 500V DC Ambient Temperature : 10C to +55C Mechanical Life : =10,00,000 operations Coil Power : <5 VA Supply Terminal : Back panel terminal Working Temperature : 10C to +55C Size : Other, 96 x 96 mm Terminal Type : Other, Screw Type Contact Resistance : <50 m Theory : Other , Electromagnetic Relay Power Consumption : <5 VA Coil Voltage : 230V AC Dielectiric Strength : 2kV for 1 minute

Send Inquiry

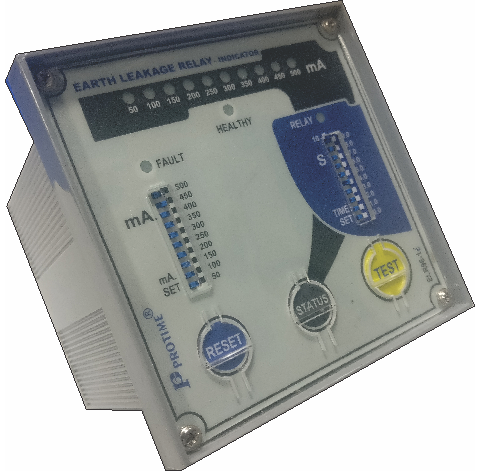

Earth Leakage Relays ELR96-1C/i B:50mA-500mA Minimum Order Quantity : 5 Product Type : Earth leakage Relays Contact Load : Low Power Contact Form : 2 C/O Protect Feature : Sealed
