Single Phase Current Relays N22-CR

Name: Single Phase Current Relays N22-CR
Brand: PROTECH ENGINEERING & CONTROL PVT. LTD.
Price: 2150 INR
Availability: InStock

2150 INR

Get a Price/Quote

Product Details:

Coil Power Less than 2 VA
Ambient Temperature -10C to +55C
Mechanical Life >10^6 operations
Dielectiric Strength 2kV AC for 1 min between coil and contacts
Working Temperature -10C to +55C
Coil Voltage 230V AC
Power Consumption <2 VA
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Single Phase Current Relays N22-CR Price And Quantity

Price 2150 INR
Minimum Order Quantity 5 Piece

Single Phase Current Relays N22-CR Product Specifications

Rated Voltage 230V AC
Weight Approx. 120g
Theory Electromagnetic relay
Coil Power Less than 2 VA
Product Type Single Phase Current Relays
Usage Industrial
Dielectiric Strength 2kV AC for 1 min between coil and contacts
Dimension (L*W*H) Approx. 90mm x 18mm x 70mm
Working Temperature -10C to +55C
Insulation Resistance >100 M (at 500 V DC)
Size DIN rail mountable, compact
Terminal Type Screw terminal
Supply Terminal L, N
Ambient Temperature -10C to +55C
Mechanical Life >10^6 operations
Contact Form 1 Changeover (SPDT)
Color Black/Blue
Coil Voltage 230V AC
Power Consumption <2 VA
Contact Material Silver alloy
Contact Load Low Power
Operate Time Adjustable, typically 0.1~10 sec
Protect Feature Overcurrent/underload protection
Contact Resistance 100 m

Mounting Type DIN Rail
Enclosure Material ABS Flame Retardant Plastic
Relay Type Current Monitoring Relay
Indication LED status indication for relay operation
Current Setting Range 1A - 20A (Adjustable)
Reset Type Automatic / Manual reset selector switch
Frequency 50/60 Hz
Storage Temperature -25C to +70C

Single Phase Current Relays N22-CR Trade Information

Supply Ability 1000 Piece Per Month
Delivery Time 3-5 Days

Product Description

The N22 series Current relays monitors the current flowing through the circuit through CT or direct up to 5A / 1A. The secondary of C. T is connected to relay signal input. When current signal goes out of the range selected on the dial , the relay status will change . The relays are provided with time delays . The N22 relay has two selectable setting range for tripping. Also relay has wide auxiliary power supply range from 90 to 270V AC/DC. The Current relays are also provided with combined protection of Under & Over Current both settable separately.

Flexible Current Monitoring for Industrial Needs

The N22-CR current relay is engineered for sensitive current detection in single phase circuits, suitable for a wide variety of industrial processes. Its adjustable current setting and operate time allow users to tailor protection according to specific equipment or load requirements, ensuring consistent and efficient operation.

User-Friendly Interface and Safety Features

Equipped with intuitive screw terminals, LED status indication, and a manual/automatic reset selector, the relay facilitates seamless installation, operation, and maintenance. The flame-retardant ABS enclosure, robust insulation, and high mechanical life enhance safety and long-term reliability in demanding work environments.

FAQ's of Single Phase Current Relays N22-CR:

Q: How do I install the N22-CR Single Phase Current Relay on a DIN rail?

A: Installation is straightforward; simply clip the relay onto any standard DIN rail inside your control panel. Ensure supply terminals L and N are connected properly, and complete all wiring using the screw terminals as indicated in the manual.

Q: What benefit does the adjustable current setting range provide?

A: The adjustable current setting (1A to 20A) allows users to fine-tune the relay's sensitivity to overcurrent or underload conditions, ensuring optimal protection for a range of industrial machines and electrical circuits.

Q: When should I use the manual reset versus the automatic reset option?

A: The manual reset is ideal when you want to review and address the fault before re-energizing the circuit, whereas the automatic reset is preferred for unattended installations where brief interruptions are quickly resolved without human intervention.

Q: Where is the LED status indication located and what does it show?

A: The LED indicator is located on the front of the relay. It provides clear visual feedback on the relay's operational status, allowing users to quickly determine if the relay is energized or in fault condition.

Q: What process does the relay use to protect equipment from overcurrent or underload?

A: The relay continuously monitors the current. When the detected value surpasses the preset threshold or drops below the underload limit, the relay activates, isolating the circuit to prevent equipment damage or operational hazards.

Q: Can the relay be used in harsh industrial environments?

A: Yes, its ABS flame-retardant enclosure, high insulation resistance, and wide operating temperature range (-10C to +55C) make the N22-CR suitable for demanding and variable industrial settings.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Current Relays' category

Single Phase Current Relays Combine UV - OV N22-CR2 Price : 1700 INR/Piece Minimum Order Quantity : 5 Color : Black & Blue Contact Form : SPDT Coil Voltage : 230V AC Contact Material : Silver Alloy Contact Load : Low Power Operate Time : < 200 ms Power Consumption : < 2VA Protect Feature : Other, Over/Under Voltage Protection, Phase Monitoring Contact Resistance : 100m Weight : Approx. 150g Rated Voltage : 230V AC Coil Power : < 2VA Theory : Other , Electromagnetic Relay Usage : Single Phase Current Monitoring, Under Voltage and Over Voltage Protection Product Type : Single Phase Current Relays Dimension (L*W*H) : 90mm x 36mm x 65mm Dielectiric Strength : 2000V AC for 1 minute Working Temperature : 10C ~ +50C Supply Terminal : LN (Line to Neutral) Ambient Temperature : 20C ~ +55C Insulation Resistance : 100M (at 500V DC) Terminal Type : Other, Screw Terminal Size : Other, Compact DIN Rail Mount Mechanical Life : 10 Million Operations

Send Inquiry

DC Current Relays N22-CR/d Price : 1700 INR/Piece Minimum Order Quantity : 50 Color : Blue & Black Contact Form : SPDT Coil Voltage : 220V DC Contact Material : Silver Alloy Contact Load : Low Power Operate Time : <30 ms Power Consumption : <2 VA Protect Feature : Other, Overcurrent Protection Contact Resistance : <50 m Weight : Approx. 150g Rated Voltage : 90270V AC/DC Volt (V) Coil Power : 1.2W Theory : Other , Electromagnetic Relay Usage : Industrial Current Sensing Product Type : DC Current Relays, N22CR/d Dimension (L*W*H) : Approx. 22.5x100x75 mm Dielectiric Strength : 2kV AC 1 min Working Temperature : 10C to +55C Supply Terminal : DIN Rail Mount Ambient Temperature : 10C to +50C Insulation Resistance : 100 M at 500VDC Terminal Type : Other, Screw Terminal Size : Other, Standard Module Size Mechanical Life : More than 1,000,000 operations

Send Inquiry

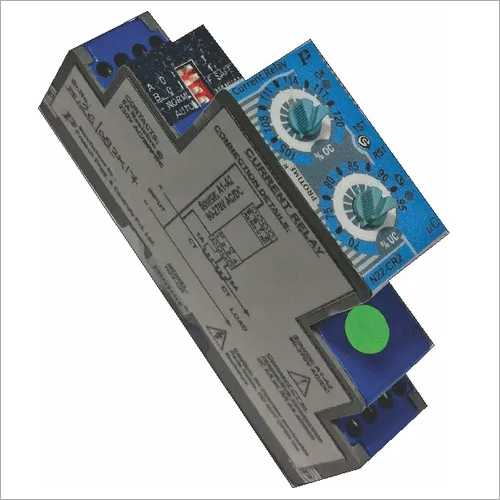

DC Current Relays Combine UV - OV N22-CR2/D Price : 2150 INR Minimum Order Quantity : 5 Color : BlueGrey Contact Form : DPDT Coil Voltage : 12/24/48/110/220V DC Contact Material : AgCdO Contact Load : Low Power Operate Time : <50ms Power Consumption : Approx 2W Protect Feature : Other, Under Voltage (UV), Over Voltage (OV) Contact Resistance : <100m Weight : Approx. 150g Rated Voltage : 90270V AC/DC Volt (V) Coil Power : <1.5W Theory : Other , Electromagnetic Relay Usage : Protection and Monitoring of DC Circuits Product Type : DC Current Relays Combine Dimension (L*W*H) : Approx 92 x 35 x 60 mm Dielectiric Strength : 2kV AC for 1 min Working Temperature : 10C to +45C Supply Terminal : Front Terminal Ambient Temperature : 20C to +55C Insulation Resistance : 100M at 500VDC Terminal Type : Other, Screw Type Size : Other, Compact Modular Mechanical Life : 10 Million Operations
