Earth Leakage Relays ELR96-1C/i E:0.5A-5.0A

Get a Price/Quote

Product Details:

Contact Material Silver Alloy
Protect Feature Earth Leakage Protection, Auto/Manual Reset
Coil Voltage 230V AC, 50Hz
Contact Resistance <50 m
Coil Power 2VA
Contact Form 1 Changeover (SPDT)
Power Consumption <5VA
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Earth Leakage Relays ELR96-1C/i E:0.5A-5.0A Price And Quantity

Minimum Order Quantity 5 Piece

Earth Leakage Relays ELR96-1C/i E:0.5A-5.0A Product Specifications

Weight Approx. 350g
Product Type Earth leakage Relays
Supply Terminal Rear
Rated Voltage 230V AC / 110V AC optional
Contact Form 1 Changeover (SPDT)
Contact Load Low Power
Usage Earth Leakage Protection in electrical circuits
Working Temperature -10C to +55C
Ambient Temperature -10C to +55C
Dielectiric Strength 2kV AC for 1 minute
Mechanical Life 10,000,000 operations
Operate Time Adjustable 100ms to 1s
Power Consumption <5VA
Terminal Type Screw terminal
Protect Feature Earth Leakage Protection, Auto/Manual Reset
Coil Voltage 230V AC, 50Hz
Contact Material Silver Alloy
Insulation Resistance >100M at 500V DC
Theory Electromagnetic Relay Detection
Dimension (L*W*H) 96 x 96 x 110 mm
Size 96 x 96 mm front panel
Coil Power 2VA
Color Grey and White
Contact Resistance <50 m

Compliant Standards IS/IEC 60947-1 & IS 12640-1
Model ELR96-1C/i
Mounting Type Panel Mounting (Flush)
Display LED indication for status and fault
Trip Indication LED
Output Relay Rating 5A, 250V AC (Resistive)
Frequency 50/60Hz
Auxiliary Supply 230V AC or 110V AC optional
Reset Mode Manual / Automatic selectable
Relative Humidity Up to 95% RH (non-condensing)
Earth Leakage Current Setting Range 0.5A - 5.0A
Test Facility Push Button Test

Earth Leakage Relays ELR96-1C/i E:0.5A-5.0A Trade Information

Supply Ability 1000 Piece Per Month
Delivery Time 3-5 Days

Product Description

The relay senses the Earth leakage current for any equipments like L. T. Panels, Switch boards, Generators, Transformers, Motors etc. These Leakage current if continues can cause insulation breakdown resulting Earth fault, which results in to loss of life or damage to equipment. The PROTIME Earth leakage relay senses leakage current through CBCT & energies relay when current goes out of the range selected on the dip switches. The Relays are provided with user settable (0-10 Sec) time delay. The CBCT is connected externally with the Busbar or cable carrying load current passed through it. The Relay has facility to show fault current indication on pressing STATUS Button. Thus this feature helps user to identify the point of fault & find out the value of fault current passing through it.

Advanced Earth Leakage Protection

The ELR96-1C/i earth leakage relay offers precise detection and swift isolation of faults, reducing the risk of electric shocks and fire hazards. Its adjustable current sensitivity and trip time provide tailored protection for diverse installations. This relay meets global safety standards, making it ideal for industrial, commercial, and residential applications.

User-Friendly Monitoring and Control

LED indicators on the ELR96-1C/i clearly display operational status and fault conditions, facilitating instant diagnostics. The push-button test facility and selectable reset modes (manual or automatic) support straightforward maintenance and efficient operation, ensuring long-term reliability and quick troubleshooting.

Durable Build and Flexible Installation

Housed in a 96x96mm panel-mount design, the relay resists high humidity and temperature extremes, withstanding over 10 million operations mechanically. Its screw terminals, rear supply connection, and robust dielectric strength ensure safe and stable performance even in demanding environments.

FAQ's of Earth Leakage Relays ELR96-1C/i E:0.5A-5.0A:

Q: How does the ELR96-1C/i detect earth leakage currents?

A: The relay utilizes an electromagnetic relay detection principle to sense earth leakage currents within the adjustable range of 0.5A to 5.0A. When a current exceeding the set threshold is detected, the unit trips the output relay to disconnect the circuit, thereby providing quick and reliable protection.

Q: What is the process for resetting the relay after a trip event?

A: The ELR96-1C/i can be reset manually using the front panel reset function or automatically, depending on the selected mode. This flexibility allows users to choose the preferred reset method based on safety procedures and operational requirements.

Q: When should the push-button test facility be used?

A: The push-button test should be used periodically during scheduled maintenance or installation checks. Activating this function simulates a leakage event, enabling users to verify the correct operation of the relay's detection and trip mechanism without introducing a real fault.

Q: Where is this earth leakage relay typically installed?

A: Designed for panel (flush) mounting, the ELR96-1C/i is suitable for switchboards, distribution boards, and motor control centers in industrial plants, commercial complexes, and residential setups needing reliable earth leakage protection.

Q: What are the benefits of using LED indication for status and fault?

A: The built-in LED indicators provide clear and immediate visual feedback of the relay's operational state and any detected faults, making status monitoring straightforward and enhancing safety by supporting rapid troubleshooting.

Q: How does the adjustable operate time enhance protection?

A: Allowing users to set the operate time from 100ms to 1s helps optimize protection for different applications by minimizing nuisance tripping during transient conditions while ensuring faults are isolated quickly for maximum safety.

Q: What standards does the ELR96-1C/i comply with, and why is this important?

A: The relay meets IS/IEC 60947-1 and IS 12640-1 standards, ensuring conformity to internationally recognized safety and performance criteria. This compliance guarantees dependable operation and facilitates acceptance in regulated markets and critical installations.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Earth Leakage Relays' category

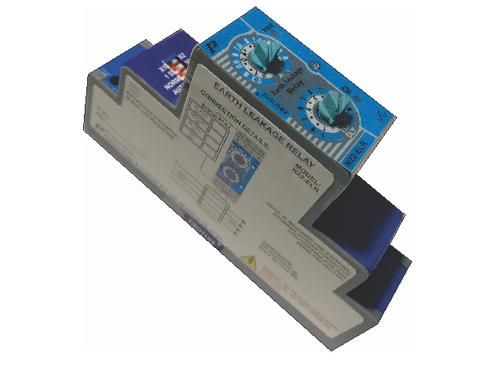

Earth Leakage Relays N22 ELR B:0.1A-2.0A Price Range : 1700.00 - 2240.00 INR/Piece Minimum Order Quantity : 5 Product Type : Earth leakage Relays N22 ELR, B:0.1A2.0A Contact Load : Low Power Size : Other, Modular DIN rail type Protect Feature : Other, Earth leakage protection, adjustable sensitivity and time delay Contact Form : 1 NO + 1 NC Contact Resistance : <100 m Coil Power : <5VA Coil Voltage : 230V AC Terminal Type : Other, Screw type terminals Theory : Other , Electromagnetic relay operated by leakage current detection Insulation Resistance : 100M at 500V DC Contact Material : AgCdO Mechanical Life : 10^6 operations Working Temperature : 10C to +55C Ambient Temperature : 10C to +55C Dielectiric Strength : 2kV AC for 1 min Power Consumption : <5VA Supply Terminal : L, N (Line and Neutral) Color : Blue and grey Dimension (L*W*H) : Approx. 75mm x 22.5mm x 100mm Usage : Protection against earth leakage in electrical circuits Operate Time : Adjustable (typically 60500 ms) Weight : Approx. 180g Rated Voltage : 230V AC

Send Inquiry

Earth Leakage Relays ELR96-1C E:0.5A-5.0A Price Range : 1800.00 - 2060.00 INR/Piece Minimum Order Quantity : 5 Product Type : Earth leakage Relays Contact Load : Low Power Size : Miniature Protect Feature : Other, Earth fault/leakage protection Contact Form : 1 Change Over (SPDT) Contact Resistance : 100m Coil Power : Not Applicable (Solid State Unit) Coil Voltage : Not Applicable (Solid State Unit) Terminal Type : Other, Screw type terminal Theory : Other , Current Sensing Relay Insulation Resistance : 100M at 500V DC Contact Material : Silver Alloy Mechanical Life : 1 Million operations Working Temperature : 10C to +55C Ambient Temperature : 10C to +55C Dielectiric Strength : 2kV AC for 1 min Power Consumption : <3VA Supply Terminal : Back terminal Color : Black with blue/white fascia Dimension (L*W*H) : 96 x 96 x 72 mm Usage : Earth leakage protection in electrical circuits Operate Time : Adjustable 0.1s to 1.0s Weight : Approx. 350g Rated Voltage : 230V AC / 110V AC (specify at ordering)

Send Inquiry

Earth Leakage Relays ELR96-1/i E:0.5A-5.0A Minimum Order Quantity : 5 Product Type : Earth leakage Relays Contact Load : Low Power Size : Miniature Protect Feature : Other, Earth leakage protection, manual & auto reset options Contact Form : 1 Change over (SPDT) Contact Resistance : 100m Coil Power : Less than 5VA Coil Voltage : As per rated input supply (230V AC/110V AC/24V DC) Terminal Type : Other, Screw type terminals Theory : Other , Detects earth leakage current using external CT Insulation Resistance : More than 100M at 500V DC Contact Material : Silver alloy Mechanical Life : Greater than 1 million operations Working Temperature : 10C to +55C Ambient Temperature : 10C to +55C Dielectiric Strength : 2 kV AC for 1 minute Power Consumption : Less than 5VA Supply Terminal : Rear terminal connections Color : White/Grey (Front face panel) Dimension (L*W*H) : 96 x 96 x 102 mm Usage : Earth leakage protection for power distribution systems Operate Time : Adjustable 0.2 to 5 seconds Weight : Approx 200 grams Rated Voltage : 230V AC/110V AC/24V DC (as per model selection)

Send Inquiry

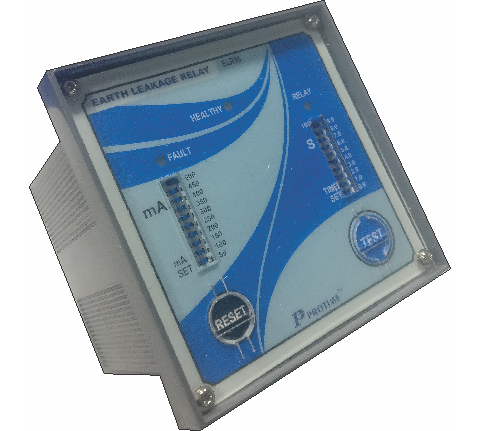

Earth Leakage Relays ELR96-1C B:50mA-500mA Minimum Order Quantity : 5 Product Type : Earth leakage Relays Contact Load : Low Power Size : Miniature Protect Feature : Other, Earth Leakage Current sensing 50mA to 500mA Contact Form : 1 Changeover (C/O) Contact Resistance : < 50 m Coil Power : N.A. (Electronic Relay) Coil Voltage : N.A. (Electronic Relay) Terminal Type : Other, Screw Type Terminals Theory : Other , Electronic Sensing and Relay Operation Insulation Resistance : = 100 M at 500V DC Contact Material : AgCdO (Silver Cadmium Oxide) Mechanical Life : 2 million operations Working Temperature : 0C to 50C Ambient Temperature : 5C to +55C Dielectiric Strength : 2kV for 1 min between input/output/ground Power Consumption : < 3VA Supply Terminal : Back Panel
